PTC_CTL

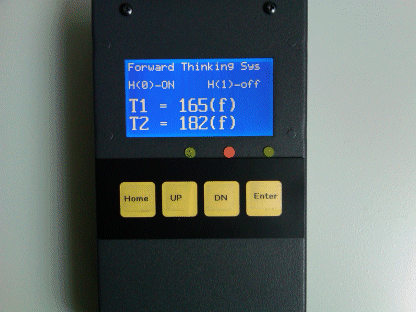

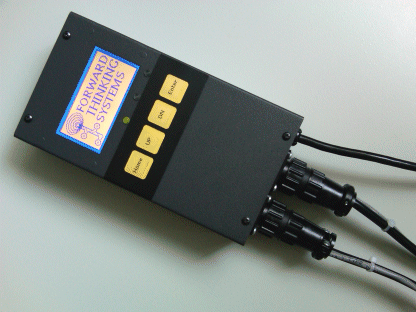

Process / Temperature Controller:

Standalone, rugged, general purpose process controller. Currently utilized as air knife controller in PCB Hot Air Leveler.

Microcontroller based. Supports multiple temperature sensor architecture topologies (Semiconductor, RTD, Thermistor). Multiple channel, PID based (tunable) heater control.

Performed: System Architecture. Electrical, Mechanical design. Microcontroller Firmware development. Prototype acquisition and Debug.

Last Updated:

Tuesday, March 29, 2011
