DDSWGM_II

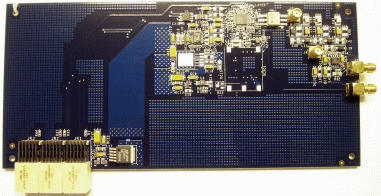

Direct Digital Synthesis Waveform Generator Module:

2.5vpp output into 50 ohm load

Phase Noise Targets at waveform output of:
-105dBc @ 1Hz (delta from c_freq)
-108dBc @ 10Hz (delta from c_freq)
-116dBc @ 100Hz (delta from c_freq)
-125dBc @ 1KHz (delta from c_freq)

Multiple clocking options:
- VCO Generated clocking
- OCXO Generated clocking
- Externally Generated clocking

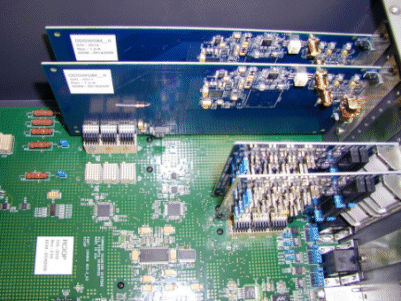

RCIOP Hosted providing - power, DDS control interface and I2C interface

Analog supply voltage down conversion and filtering

Performed: System Architecture. Electrical, Mechanical, design. Prototype acquisition and Debug.
